Supplying items for the model builder of US Navy Warships

Hull Numbers & Aircraft Decals in various scales
HAWK GRAPHICS DECALS, Hull & ship Decals in various scales
CUSTOM MADE DECAL SETS, Hull Numbers & ship Decals in various scales
Scale Anchor Chain & Small brass wheels, eye bolts, Ladders,
Naval/Military Decorations & Insignias
SHIP DRAWING POSTERS
Equipment Drawings, Doors, Davits, S.L., RS Lockers, Stanchions.....
Radar Pamphlets & Drawings WW2 & Post War
Scale paper Flags for Models
PAINTS for models
Battleship & Cruiser Catapult Drawings and Pamphlets
Aircraft Drawings
CVA,CVN Flight Deck Marking Plans
Brass PROPS
Hull Numbers and Ship's Name Letters information sheets
SAFETY NETTING for Life Lines

SHIP DRAWING POSTERS:

WARSHIP POSTERS

These 18"x24" poster are printed on high gloss Poster Paper stock and are suitable for framing. Produced by CEVisions These sell for $14.00 each EXCEPT CEV-5 and CEV-11 which are TWO sheets and sell for $16.00, plus shipping.

CEV-1 BALAO CLASS WW2  SUBMARINE

CEV-2 GATO CLASS WW2 SUBMARINE

CEV-3 GUPPY Conversion SUBMARINE

CEV-4 USS ALABAMA BB60

CEV-5 USS MIDWAY CVB41

CEV-6 TENCH CLASS SNORKEL CONVERSION SUBMARINE

CEV-7 TENCH CLASS GUPPY IIA

CEV-8 TENCH CLASS GUPPY III SS343

CEV-9 TENCH CLASS SNORKEL CONVERSION SUBMARINE

CEV-10 TENCH CLASS SS417 WW2

CEV-11 USS MIDWAY CVA41 ANGEL DECK CONVERSION

CEV-12 USS MASSACHUETTES BB59

CEV-13 TENCH CLASS GUPPY IIA STEP SAIL CONVERSION

CEV-14 TENCH CLASS GUPPY "SSK" CONVERSION


Hull Number Decals:

From GOLD MEDAL MODELS we carry 1/700, 1/350, 1/192 scale decals.
Plus decals for Naval aircraft.


SHIP HULL NUMBER DECALS
1/192 scale:NAVAL SHIP DECALS: Shaded hull numbers (1", 3/4", 1/2", and 1/4 tall in 1/96 scale; 1/2", 3/8", 1/4" and 1/8" tall in 1/192 scale), un-shaded hull numbers (1/8" tall in 1/96 scale; 1/16" tall in 1/192 scale), Roman and Arabic numeral draft marks, "E" efficiency markings in white and red, First Aid, High Voltage, Decontamination, and No Smoking placards. order number LP-192/1D $6.00 per set

1/350  scale NAVAL SHIP DECALS: Includes shaded and un-shaded hull numbers, draft marks (1/350-1/400 only), warning stripes, auxiliary ship markings, Plimsoll marks, various carrier flight deck stripes and hangar door stripes. Four colors, two sheets. 1/350 scale Order Number LP-350-1D $8.00

1/350 scale ENTERPRISE AIR WING "LO-VIZ" DECALS:  Includes all squadron markings in lo-vizibility (with some hi-visibility) for Tamiya USS ENTERPRISE aircraft. Marine markings supplied for F-18s. Equips 32 aircraft of nine different types. National ensign and "Navy" markings not furnished (these are supplied with aircraft kits). Four colors, one sheet. Order Number LP-350-2D SOLD OUT

Aircraft decals

1/350 scale ENTERPRISE AIR WING "HI-VIZ" DECALS:  Includes national ensign and colorful squadron markings for CVW14 "NK" ca.1973. Equips 28 aircraft of seven different types (less F-18s for Tamiya 1/350 USS ENTERPRISE. Also includes red intake warnings and yellow "rescue" arrows. Five colors, one sheet Order Number LP-350-3D DISCONTINUED

1/350 scale ENTERPRISE AIR WING DECALS - EAST COAST Fits aircraft in Tamiya's 1/350 scale USS Enterprise kit (CVN-65.) Provides simulated canopies in dark gray for 40 aircraft of nine different types (four A-6, four EA-6B, four E-2C, four A-7, four H-3, four F-14, four F-18, four S-3, and eight F-4.) Eliminates the need for tedious hand-painting of aircraft canopies. Can also be used with GMM Decals 350-2D Lo-Viz (West Coast) and 350-3D Hi-Viz A/C Decals. Order Number LP-350-4D Price: $7.00

1/350 scale ENTERPRISE AIR WING CANOPY DECALS Provides simulated canopies in dark gray for 40 aircraft of 9 different types, eliminating the need for tedious hand paint of canopy frames. Order Number LP-350-5D Price: DISCONTINUED

1/350 WW2 USN Aircraft Decals: A single 10" by 4" sheet that contains hundreds of markings in full color including national insignia in four sizes (24", 36", 48" and 60" diameters) and for five historical periods (pre-WW2 to 1942, 1942 to June 1943, June 1943 to Oct. 1943, Oct. 1943 to 1947, and 1947 to present day (these latter being intended for modelers building Essex-class ships in Korean war configuration.) Total number of all national insignia in all sizes and eras: 532. Also on the sheet are alphabet letters in one size (24" high) and numbers in two sizes (24" and 36" high) with both printed in two colors: black and white. Five alphabet sets are white, two are black, and all are 24" high. There are 42 sets of numerals from 1 through 0 provided; twenty sets are 24" high and 22 are 36" high with half printed in white and half in black. White "NAVY and "MARINES" markings are supplied, too; 34 36" NAVY's, 12 48" NAVY's, and 22 36" MARINES'. A small number of other useful markings are also provided. Up to ten aircraft in each era's markings can be equipped with this decal; in some cases, twenty or more can be outfitted depending on aircraft size. A full air wing for one era will require about four sheets. Order Number LP-350-6D Price: DISCONTINUED

1/350 WW2 USN Carrier Decals:Two 9" by 4" sheets that contain large black numerals for the flight decks of World War Two U.S. Navy Fleet Aircraft Carriers, particularly Yorktown and Essex-class ships. The decal provides numbers in the following quantities: 1 x 4; 2 x 4; 3 x 4, and 4 through 0 x 2 each. Also supplied are the following ships' names in black: Lexington (two names provided), Saratoga (two names provided), and one sample each of Wasp, Yorktown, Enterprise, Hornet, Essex, Intrepid, Franklin, Ticonderoga, Randolph, Bunker Hill, Hancock, Bennington, Boxer, Bon Homme Richard, Leyte, Kearsarge, Antietam, Princeton, Shangri La, Lake Champlain, Tarawa, Valley Forge, and Philippine Sea. All decals are printed in flat black with the deck numerals having flat clear carrier film over the color image areas only. All numbers have correct configurations and sizes based on study of aerial photos of actual WW2 USN carriers. WARNING! The large flight deck numbers have been designed to eliminate the clear carrier film effect from the hollow areas of the numbers and this makes the decal numerals EXTREMELY delicate after they have been dipped in water. To avoid problems, allow the image to thoroughly loosen from the paper backing sheet and slide the image VERY GENTLY using small movements onto the plastic model's surface. Make certain the model's surface is thoroughly wetted before attempting to slide the decal onto it or tearing and fracturing may result. MODELER'S TIP: Use a number that won't be needed on your model to practice your techniques before committing yourself to the actual numbers you need. Order Number LP-350-7D Price: $9.00

See Gold Medal Models link above for more added.


HAWK GRAPHICS DECALS

hwklogo.gif - 0 Bytes

1/350 Decals NOTE: RED PRICES OUT OF STOCK and NOT AVAILABLE AT THIS TIME

Item #
Description
Click image for bigger photo
PricE
HD3501
WWII RN/RCN/RAN Signal flags  - 6'
Battleships and Carriers - includes Ensigns, Admirals flags.

$TBD
HD3502
WWII RN/RCN/RAN Signal flags  - 4.5'
Battleships and Carriers - includes Ensigns, Admirals flags.
$TBD
HD3503
WWII RN/RCN/RAN Signal flags  - 3'
Battleships and Carriers - includes Ensigns, Admirals flags.
$TBD
HD3504
WWII German Signal flags
suitable for most ship types, includes sea plane decals, Ensigns and Admirals flags.
$TBD
HD3505
WWII RN/RCN/RAN Hull Numbers
Includes 1 sheet of Black and white letters and numbers.

350_rn_rcn_wwii_hull_numbers
$9.00
HD3506
Modern RN Ship markings
Includes Hull numbers (several styles), Draft markings, Deck warning circles, Helicopter markings, Ship names and more! 4 sheets included!!
$24.00
HD3507
USN Shaded Hull Numbers - Lo Viz (Grey)
350loviz
$9.50
HD3508 USN Shaded Hull Numbers - Hi Viz (White)    $9.50
HD3509
Canadian Non-skid deck markings
Includes 2 sheets of grey pads and strips used in the 70s and 80s.

350_cdn_non_skid
$13.50
HD3510
Canadian Sea King Markings
Includes 1 sheet of markings for 80s and 90s Sea kings, enough for 4 birds, 2 lo viz and 2 hi vis with rotor tip stripes included.
350_cdn_sea_kings
$8.00
HD3511
RN Escort Carriers and FAA Markings
Includes 4 sheets of markings for NABOB and PUNCHER and all the RN Ruler/Attacker (Bogue) class escort carriers and full airwings. For use with the ISW Bogue kit.
350_rn_escort_cve
$24.00
HD3512
Modern Japanese Non-skid deck markings
Includes 1 sheet of grey strips with white outline to simulate modern non-skip deck markings.
350_jap_non_skid
$8.50
HD3513
Generic Non-skid markings
Includes 1 sheet of grey strips to simulate non skid deck markings.
350_non_skid
$8.00
HD3514
Charles F Adams Class
Includes 1 sheet packed with tons of markings and flags for almost every Adams class ship that sailed. Includes markings for the USN, Federal German Navy, Royal Australian Navy and the Greek Hellenic Navy! A must have for anybody who owns a WEM Adams class destroyer kit!!
adams
$21.00
HD3515
WWII Japanese Signal flags
suitable for most ship types - includes Ensigns, Admirals flags and plane markings.
$TBD
HD3516
WWII Russian Signal flags
suitable for most ship types - includes Ensigns and Admirals flags.
$TBD
HD3517
WWII USN Signal Flags - Large
Battleships and Carriers - includes Ensigns and Admirals flags.
350_usnflagslrg
$14.00
HD3518
WWII USN Signal Flags - Medium
Cruisers and Escort Carriers - includes Ensigns and Admirals flags.
350_usnflagsmed
$12.00
HD3519
WWII USN Signal Flags - Small
Destroyer and smaller ship types - includes Ensigns and Admirals flags.
350_usnflagssmall
$9.00
HD3520
USN Hull Letters for Amphibs and Auxiliary ships. Modern and WWII
350_hull_letters
$3.50
HD3521
Modern International Signal flags, used by most Navies today.
Includes Ensigns for Canada, RN, USN, Australia.
$TBD
HD3522 Generic USN Deck markings coming sooncoming soon

HD3523

Oliver Hazard Perry Class Frigates - Long hull and International ships.

Includes markings for USN Long Hull, Australia, Poland, Spain, Turkey, Bahrain, Egypt and Taiwan.    Click on the box to the right.

$27.00

HD3524

USS WASP Class LHDs - Includes distinguishing markings for all 8 ships in the class.

Also includes fire truck and tractor decals, hi and lo viz hull numbers and flags.

DOES NOT include deck lines or aircraft markings.

$34.00

HD3525

RN White Ensigns and Jacks - Includes sizes to fit all ships.

RCN, RAN, RNZN Jacks and funnel symbols. Also includes Admiral flags and other specialty flags. Straight and wavy designed in all sizes.

$14.00



1/700 and 1/600 Decals

Item #
Description
Click image for bigger photo
Price
HD7001
USN Hull Numbers - Lo Viz (Grey)   700loviz
$8.50
HD7002
USN Hull Numbers - Hi Viz (White)
$8.50
HD7003
WWII RN/RCN/RAN Hull Numbers
Includes 2 sheets of Black and white letters and numbers.

700_rn_rcn_wwii_hull_numbers $8.50
HD7005
Japanese Non-skid deck markings
Includes 1 sheet of grey stripes with a white outline.
700_jap_nonskid $8.00
HD7006
Modern RN Ship markings
Includes Hull numbers (several styles), Draft markings, Deck warning circles, Helicopter markings and more! 4 sheets included!!

SOLD OUT, sorry
HD7007
Non-skid markings  700loviz
$7.50
HD7008
Generic USN Deck markings  $TBA
HD7009
RN Escort Carriers and FAA Markings
Markings for NABOB and PUNCHER and all the RN Ruler/Attacker (Bogue) class escort carriers and full airwings.
$5.00
HD7010
USN Hull Letters for Amphibs and Auxiliary ships. Modern and WWII 700_usn_hull_letters $3.50
HD7011
TBA
$TBD
HD6002
1/600 Modern RN Ship markings
Includes Hull numbers (several styles), Draft markings, Deck warning circles, Helicopter markings and more! 4 sheets included!!

$16.00



1/1250 Decals and Paper Flags
Item #
Description
Click image for bigger photo
Price
HD1251
USN Hi Viz Shaded Hull Numbers

$5.75
HD12501
WWII Signal flags and Ensigns - Printed on 13lb thin paper
$5.75



1/144 and 1/192 Decals

Item #
Description
Click image for bigger photo
Price
HD9201
WWII RN/RCN/RAN Black and White Hull Numbers
Includes 2 sheets of Black and white.
$TBD
HD9202
Generic Non-skid deck markings
Includes 4 sheets of grey pads and strips used from the 50s to the 80s on ship decks.

$13.50
HD9203
Modern USN     (includes 3 of each sheet, 6 sheets total!!)
Includes hull numbers, flags, helicopter markings, warning circles, deck markings and much more!

$35.00
HD9204
WWII USN   (includes 1 sheet)
Includes hull numbers, draft markings, plane markings and flags.

$11.00
HD9205
Canadian Sea King Markings
Includes 1 sheet of markings for 80s and 90s Sea kings, lo viz and hi vis with rotor tip stripes included.

$7.00
HD9206
TBD $TBD
HD4401 Canadian Submarines Grilse and Rainbow - For use on Trumpeter Gato Kit, modified to either HMCS Grilse (ex-USS Burrfish, Balao class) or HMCS Rainbow (ex-USS Argonaut, Tench class)  144 sub
$10.00


1/96 and 1/72 Decals

Item #
Description
Click image for bigger photo
Price
HD9601
USN Shaded Hull Numbers - Hi Viz (white/black)  (2 sheets included)   96hiviz
$20.00
HD9602
USN Shaded Hull Numbers - Lo Viz (grey/grey)  (2 sheets included)    96loviz
$20.00
HD9603
WWII RN/RCN/RAN Black round style Hull Numbers and depth markings
Includes 2 sheets

  $10.00
HD9604
WWII USN Hull Numbers
Includes 3 sheets - Destroyer sized 48 star flag and jack, depth markings, 24 inch and 15 inch numbers in black and white, Aircraft stars - early, mid and late war.

  $26.00
HD9605
Canadian Sea King Markings
Includes 4 sheets of markings for 80s and 90s Sea kings, enough for 4 birds, 2 lo viz and 2 hi vis with rotor tip stripes included.

$11.00
HD9606
Non-Skid markings
Includes 6 sheets grey stripes used from the 50s to the 80s on ship decks.

$23.00
HD9607
Modern USN Generic Markings
  $TBD
HD9608
Modern RN Hull Markings
Includes 2 sheets or numbers/letters, depth markings and flight deck letters. Also has 1/48 scale patrol craft M's and P's to go with the numbers.

  96 RN mod small
$23.00
HD9609
Modern RN Deck Markings
Includes Black and Yellow warning circles, Flight deck markings, Helo markings.

$TBD
HD9610
USN Shaded Hull Letters and WWII for Auxiliaries
$11.00
HD9611
Canadian Ship markings
$TBD
HD9612
WWII RN/RCN/RAN White round style Hull Numbers and depth markings
$15.00
HD9613
USCG Markings - includes 2 complete sheets with Hull, Deck, Helo and Boat markings for every size of USCGC from the New Berthold class down to Bouy tenders. The largest hull markings and crests are also usable on 1/48 Bouy tenders and small Cutters.
$37.00
HD7201 Canadian Submarines Grilse and Rainbow - For use on Revell Gato Kit, modified to either HMCS Grilse (ex-USS Burrfish, Balao class) or HMCS Rainbow (ex-USS Argonaut, Tench class)
  72 sub
$14.00
HD7202
Canadian Sea King Serial Numbers
Includes 2 sheets of lo viz and hi vis serial numbers to compliment the Belcher Bits helicopter set with rotor tip stripes included.

$11.00
HD7203
Hi Viz USN/RAN Shaded hull numbers
  $22.00
HD7204
Halifax class frigate small detail markings
  $11.00
HD7205
Modern RN Hull Markings
Includes 4 sheets or numbers/letters and depth markings


$32.00
HD7206
USN/RN Small markings set (warning signs, rad signs, door markings, boat and motor markings)
$TBD
HD7209
USN WWII HULL NUMBERS
$8.00
HD7206
USN/RN Small markings set (warning signs, rad signs, door markings, boat and motor markings)
$TBD
HD7210
USN MODERN USN DECK DETAILS - WHITE
$15.00
HD7211
RN WWII Round Hull Numbers - White
$22.00
HD7212
RN WWII Round Hull Numbers - Black
$14.00
HD7213
Depth Markings   $16.00



1/48 Decals
Item #
Description
Click image for bigger photo
Price
HD4801
USN WWII  Hull Numbers

$14.00

Updated 16 August 2016

FLAG SET
1/350 & 1/700 scale INTERNATIONAL NAVAL & MERCHANT FLAG SET: Includes ensigns and jacks for US, Japan, UK, France, Germany, Canada, Australia and USSR from 1933 to 1990. Also merchant house flags of ten lines (Cunard, United States Lines, etc.) in four sizes each. All flags in "windblown" format, over 200 in all. Five colors, two sheets. Order Number LP-700/350-1D $6.00 each

postage and handling extra
Updated 1/26/2009

CUSTOM MADE Hull Number DECAL SETS



THIS SERIVCE IS NOW DISCONTINUED

Hull Number and Letter Info Sheets

SHIP NAME LETTERS DATA SHEET

This 11x17 sheet shows the proper size and shape of stern block letters for USN ships. Order #SHN-2 .......$4.00

These 11x17 sheets are for the USN hull number style and placements from the 1930's to current. Order #SHN-1 $6.00

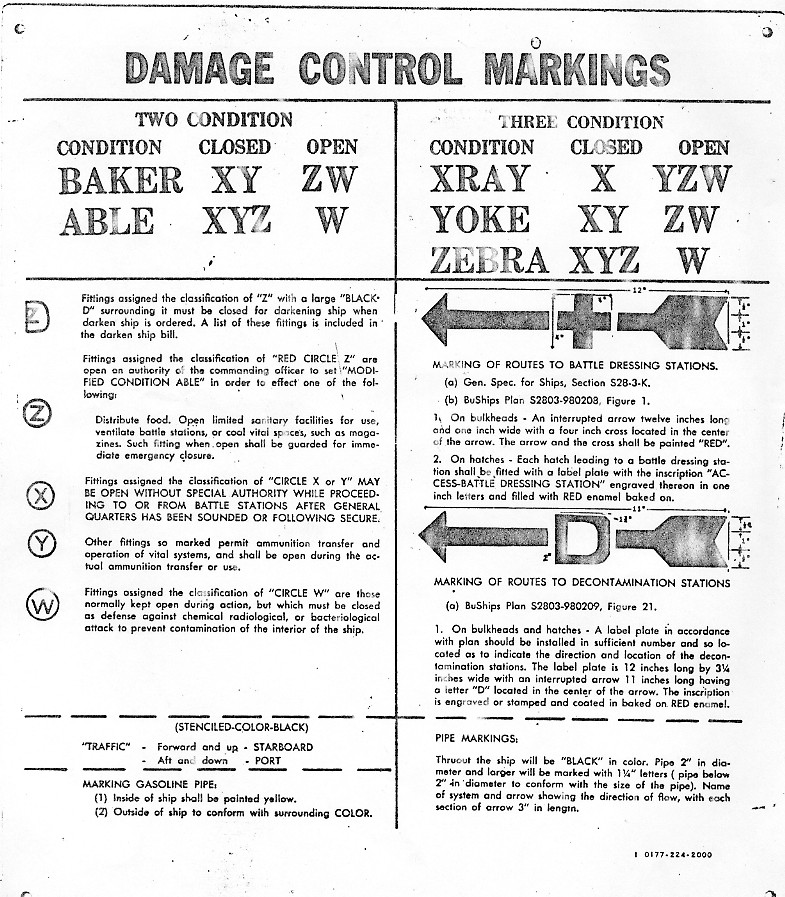

c Damage Control markings for bulkheads on USN ships from 1960-2000 info sheet. Order #SHN3 $1.50


FLIGHT DECK MARKING PLAN

These painting instructions show how to mark USN Carrier Flight Decks. This 1970 set of plans are still current for newer ships.

Order#ItemPrice
FD-1FLIGHT DECK OVERALL MARKING PLAN 11x17$3.50
FD-2SINGLE LANDING AREA SHIP PLAN$3.50
FD-3TWO LANDING AREA SHIP PLAN$3.50

FLIGHT DECK LIGHTING PLANS

The FLIGHT DECK LIGHTING PLANS are 8 1/2x11 sheets showing the lighting position of lights. Very helpful and shows the decking lines for the landing area for that ship/class. The are 75 cents each or all 19 for $10.00

FDLIGHT.jpg - 0 Bytes
Order#Item
A5-1CVS11
A5-2CVS14
A5-3CVT16
A5-4CVS18
A5-5CVA19
A5-6CVA34
A5-7CVA41
A5-8CVA42
A5-9CVA43
A5-10CVA59
A5-11CVA60
A5-12CVA61
A5-13CVA62
A5-14CVA63
A5-15CVA64
A5-16CVAN65
A5-17CVA66
A5-18CVA67
A5-19CVAN68

Scale Anchor Chain and Brass etched parts



Stanchions,  LADDER RUNGS
PLASTIC SMALL STUD LINK CHAIN
This new line of chain are made by 3-D printers

Order No. Size Links per inch

PM-C115 0.6mm/11.5 LPI:  DISCONTINUED
PM-C75   0.75mm/7.5 LPI:  $9.00
PM-C95   0.9mm/9.5 LPI:    $10.00

Acrylic plastic used in the anchor chain often does not take enamel paint well... the paint goes on but stays tacky for weeks.

However, ACRYLIC paints (the water based stuff) work very well.



Note: Chain are in 12" lengths

METAL Chain

Order #Links per inch1 or 1/2 meterPrice
C-700061$12.00
C-7000/261/2$7.00
C-700151$13.00
C-7001-251/2$7.50
C-70024.51$15.00
C-7002/24.51/2$8.00

SMALL SCALE LINK CHAIN

Sizes in (mm): Item numberWire SizeLink widthLink length Approx links per (INCH)Price per meter (39")
SM-70030,20,91,150$5.00
SM-70040,31,21,545$5.50
SM-70050,351,41,725$4.65
SM-70060,41,52,022$4.80
SM-70070,451,72,320$5.00
SM-70080,52,02,518$5.20


PHOTO ETCH BRASS

VERTICAL LADDERS
ITEM #ITEMPRICE
SM-30015.75" LENGTH, 1/96 sc.$7.75
SM-30025" LENGTH, 1/192 sc.$7.75
SM-30305" LENGTH, 1/350 sc.$7.75
HAND WHEELS (50) PER PACK
SM-30442mm,3 SPOKE$3.50
SM-30422mm,4 SPOKE$3.50
SM-30462mm,5 SPOKE$3.50
SM-30453mm,3 SPOKE$4.00
SM-30433mm,4 SPOKE$4.00
SM-30473mm,5 SPOKE$4.00
FOOT/GRAB ROD BRACE
SM-30342mm LENGTH (40)$2.75
SM-30352,5mm LENGTH (40)$2.75
SM-30363mm LENGTH (40)$2.75
SM-30373,5mm LENGTH (40)$2.75
SM-30384mm LENGTH (40)$2.75
BALL STANCHION 1/96 SCALE (100)
SM-30392 BALL$8.00
SM-30403 BALL$8.00
SM-30414 BALL$8.00
NAVY TYPE
SM-31253 POSITION$7.75
SM-31262 POSITION$7.75
HAND WHEELS, assortment sets (60) PER PACK
SM-30271,5 2 2,5mm,3,4&5 SPOKE$7.00
SM-30283 3,5 4mm 3,4&5 SPOKE$7.25
SM-30295 6 8mm 3,4&5 SPOKE$7.50
Up dated 5/30/06



LADDER RUNGS

1/96 scale



We now offer LADDER RUNGS. These .015 wire, drop style Ladder Rungs come 50 to a bag.
Order Number GI-8 Price $7.00


AIRCRAFT DRAWINGS

Paul Matt 3-View Scale Airplane Drawings

Each drawing is highly detailed and is an accurate working print with all dimensions, specifications, airfoils, cross sections, templates and color schemes. These plans can be scaled up or down to build a model of the aircraft you want.

HA-1 Curtiss S03C SEAGULL1/24$24.00
HA-2 Brewster F2A-3 BUFFALO1/24$24.00
HA-3 Vought F4U CORSAIR1/24$24.00
HA-4 Curtiss SC-1 SEAHAWK1/24$24.00
HA-5 Grumman J2F-5 DUCK 1/48$24.00
HA-6 Boeing F3B-11/48$24.00
HA-7 Vought XF5U-11/48$28.00
HA-8 Grumman FF-11/48$24.00
HA-9 Consolidated P2Y-21/48$28.00
HA-10 Grumman F11F-1 TIGER1/32$24.00
HA-11 Curtiss F-Boat 19131/24$24.00
HA-12 Lockheed PV-1 VENTURA1/48$28.00
HA-13 Consolidated PBY-5A1/48$28.00
NOTE: These plans come folded

updated Feb., 12 2006


CATAPULT DRAWINGS

These detailed Battleship/Cruiser catapult drawing were produced using the official US Navy drawings. These are for the WW2 era ships. 1/48 scale (1/4"=1') $6.50 each
CAT-1 Battleships BB55-64, CB1-2
CAT-2 Cruisers CA32- up, CL40- up

EQUIPMENT PAMPHLET 8 PAGES, Photos and drawings in 1:96 scale.
EP-1 BATTLESHIP CATAPULT.........$4.50


Radar Pamphlets & Drawings

Much like our Ordnance Pamphlets, which show photos, drawings, and data on a certain piece of equipment. 6-8 pages each. $4.50 each
RP-1"SK" & "SK2" Radars
RP-2"SA" & "SA-2" Radars
RP-3"SC" & "SC-1" Radars
RP-4"SC-2" & "SC-4" Radars
RP-5"SG" Type Radars
RP-6"SR" Radar
RP-7"SPS-49" Radar

Radar Drawings

The below drawings are "Working Circle Drawings" from USN Publications. They show outline drawings with deminsions.
These sell for $10.00 each, except were noted.

Order #Type
R-SR-ASR-A Radar, Date 1945 used on DD710-class
R-SXSX Radar, Date 1946 used on CV's DDR's
R-SPS6SPS 6 Radar, Date 1948, used on CA's
R-SPS6ASPS 6A Radar, Date 1949
R-SPS6CSPS 6C Radar, Date 1950's
R-SPS10SPS 10 Radar, Date 1950's USed on CLG's
R-SPS23SPS 23 Radar, Date 1950's used on Coast Gurad vessels
R-SPS49SPS 49 Radar 1975 Surface Search  $18.00
R-SPS30SPS30 Radar 1962 Also used of DDR's  $18.00
R-AS571AS-571/SLR Antenna, 1954
R-AS616AS-616/SLR Antenna ,1953
R-AN-SAT2AN/Sat 2 Infrared Trans., 1952
R-OA570OA-570/SLR Ant, 1952


SAFETY NETTING

RAILING SAFETY NETTING $2.50 each

Use this netting on the lower two life lines for safety netting or flight deck safety netting. This netting is made of nylon and is of a fine mesh. Can be used from about 1/144 scale to 1/48 scale 1- 5"x11.

NAVAL INSIGNIAS & RIBBONS

RIBBONS.gif - 6656 Bytes
We carry a large selection of Naval and Military ribbons and collar devices from Ensign to Fleet Admiral. Plus we have the slide on bars for the ribbons and small attachments for these. We also carry Naval wings, Submarine Dolphins, Surface warfare, SSBN Patrol, WW2 Patrol Pin and other such special devices in full size and miniature. We also carry Officer and Chief Petty Officer hat devices. Our catalog lists the entire line.

Check out these official US Navy sites for color pictures for RIBBONS and INSIGNIAS.
All of the below insignias and ribbons are official U.S. Military made by VANGUARD. These can be used for display on a model base or plaque. Also, replace your old worn Naval decorations.

Breast Insignias

usnBadge.gif - 10479 Bytes
Full size/Miniature
order #ItemPrice
V-601Naval Wings$7.00/$5.00
V-613Submarine Gold, Officer$7.00/$5.00
V-614Submarine Silver, Enlisted$7.00/$5.00
V-618Sub. Combat Pin$9.00/$6.00
V-619Sub. SSBN Patrol$7.00/$5.00
V-620Surface Warfare Gold, Officer$8.00/$5.50
V-621Surface Warfare Silver, Enl.$7.00/$5.00
V-360Officer Hat Device$15.00/$7.00
V-365Chief Petty Officer$9.00/$6.00
INGCPO.jpg - 10336 Bytes

COLLAR DEVICES (pair)


US Navy Rank Insignias

V-426Admiral, 4 star$15.00
V-427Vice Admiral, 3 star$14.00
V-428Rear Admiral, 2 star$12.00
V-429Commodore, 1 star$8.00
V-430Captain, Silver Eagle$7.00
V-431Commander, silver Oak Leaf$6.50
V-432Lt. Commander, gold Oak leaf$6.50
V-433Lieutenant, double silver barsOUT
V-434Lieutenant Junior Grade, single$6.00
V-435Ensign, gold single bar$6.00

EQUIPMENT DRAWINGS:

These drawings are detailed drawings of USN standard equipment

Order #ItemPrice
F-122,500 lb. Stockless Anchor$3.00
F-220mm Ready Service Ammo Service Locker (WW2)$4.00
F-3Hedge Hog Ready Service Locker$4.00
F-4Balsa Life Raft, Rect. & Oval (20 man)$4.00
F-6Standard Life line stanchions$5.00
F-7Standard Cleats$4.00
F-8Boat Boom, Wood 23', DD type$3.00
F-9Davit, Swing type for 26' whale boat$4.00
F-10Balsa Life Rafts 10,15,40 &60 man$3.00
F-11Stockless Anchor, all sizes$3.00
F-12Stud link chain, all sizes$3.00
F-1336" Searchlight detailed plan, various large scales$15.00
F-HOSE-11 1/2" Wash Down Hose Reel1940Large Sc.$5.00
F-3"/50RSReady Service Locker for 3"/50 cal. Ammn.19411 1/2"=1' sc.$10.00
F-DAVIT-1Gravity Davit for 26' Personnel Boat (DD963 cl) 1970's3/4"=1' sc.$13.00
F-DAVIT-2Gravity Davit for 26' Motor Whale Boat (DD963 cl) 1970's3/4"=1' sc.$13.00

See the "Bu" series of plans for more equipment drawings for various ship types.

EQUIPMENT

Bu-Door126x66 – 8 dog Q.A.W.T.Door1 ½” =1’scale3/56$12.00
Bu-Door226x66 – 6, 8 & 10 dog W.T. Door1 ½” = 1’scale6/53$12.00
Bu-Door326x66 & 18x51 W.T. Door1 ½” = 1’scale11/52$12.00
Bu-Door426x45 6, 8 Dog W.T. Door1 ½” = 1’scale6/53$12.00
Bu-Door526x66, 8 &10 Reinf. Door1 1/2"=1' scale1943$12.00
Bu-Wind1Wind Transmitter1:2 scale1947$10.00
Bu-Mine1“O” type Mine Sweep Float1 ½” = 1’scale6/44$12.00
Bu-Mine2Multiplane Kite-Otter Sweep Float3”=1’scale1944$12.00
Bu-Chair1Sky Lookout Chair11/51$5.00
Bu-Chair-2Sky Lookout Chair 1942 DD445194212.00
Bu-Cat1Catapult, BB Type1 1/2"=1"10/44 Plan & Profile

Fore & Aft

$20.00
Bu-Cat2G/A Gun Mk VI1/10 sc.Details, 9/38$15.00
Bu-Cat3G/A Breech Mech for Gun1/2 sc.Details, 1928$10.00
Bu-Cat4Blast Reducer for Catapult1/10 sc.1938$15.00
Bu-Cat5G/A Buffer Brake 1941$10.00
Bu-Cat6Pipe Railing for Platform11/2,3,6=1' sc.1940$22.00
Bu-Cat7Mk VI Cat Platform Details11/2,3,6=1' sc.1941$25.00
Bu-Cat8Training Mech. Hydr.3"=1'1941$10.00
Bu-Cat9Launch Car3"=1'1948$10.00
Bu-Anchor1Light Weight Anchor Mk II1943$12.00
Bu-1Target Designator Transmitter Mk 11/3rd1935-45$8.00


FLAGS for Models:

flagwaveusa.gif - 10730 Bytes

These COLOR LASER printed flags are printed on a white stock and all that is needed is to fold the double flag in half and glue together.


48 STAR FLAG50 STAR FLAG
Order #ItemPriceOrder #ItemPrice
F48S-148 Straight, 5/8" long$.50@F50S-150 Straight, 5/8" long$.60@
F48S-248 Straight, 15/16" long$.50@F50S-215/16" long$.60@
F48S-348 Straight, 1 1/4" long$.75@F50S-31 1/4" long$.90@
F48S-448 Straight, 2 1/4" long$.75@F50S-42 1/4" long$.90@
50 STAR WAVING FLAG
F50W-11 1/4" long$.90@
WAVING 48/50 STAR FLAG
F58W-15/8" long$.60@


COLOR SIGNAL FLAG SETS


flagoscar.gif - 1824 Bytes
Meaning of signal flags.

FSIG-1 3/8" sq. for 1/92 and 1/72 scale, two sets per sheet $3.50
FSIG-2 Half size for 1/192 scale, two sets per sheet $3.50


US NAVY ADMIRAL FLAG SET


admflag.gif - 1485 Bytes
,
Order #ItemPrice
FADM-16Set of 5, 3/8" square$2.50
FADM-18Set of 5, 3/4" square$3.50

COUNTRY & SPECIAL FLAGS


flagpow.gif - 5702 Bytes
These flags are approx. 7/8" long, good for various scales.
flag.jpg - 0 Bytes

$1.00 @


Order #Item
FCG-18US COAST GUARD
FMIA-18US MIA/POW flag, 5/8" long
FAU-81AUSTRALIA NATIONAL
FAU-28AUSTRALIA NAVAL ENSIGN
FFR-18FRANCE TRI-COLOR
FUK-18BRITISH UNION JACK
FUK-28BRITISH BLUE NAVAL ENSIGN
FUK-38BRITISH WHITE NAVAL ENSIGN
FCA-18CANADA MAPLE LEAF
FGE-18GERMAN SWASTIKA
FGE-28GERMAN TRI-COLOR, CURRENT
FGE-38GERMAN NAZI MERCHANT
FGE-48GERMAN NAZI ENSIGN
FGE-58GERMAN, West (w) CREST
FGE-68GERMAN NAVAL JACK CURRENT
FJP-18JAPAN "MEATBALL"
FJP-28JAPAN "RISING SUN"
FSU-18SOVIET UNION "Red Flag"
FSU-28SOVIET UNION "NAVAL ENSIGN"


PAINTS

WEMpaint_pic2.jpg - 0 Bytes
COLOURCOATS PAINTS, 14ml Tinlets, Enamel paints (like Humbrols). These paints are made in ENGLAND. All colors are matched to the Snyder & Short Color Chip Cards.

Price $3.65 per tin.

NOTE: ALL COLORCOAT PAINTS ARE DISCONTINUED.  ONCE STOCKS RUN OUT THAT's IT!

U.S. NAVY:

WEM-US01 Prewar #5 Standard Navy Gray - SOLD OUT
WEM-US02 Prewar #20 Standard Deck Gray - SOLD OUT
WEM-US03 Early 1941 5-L Light Gray
WEM-US04 Early 1941 5-D Dark Gray - SOLD OUT
WEM-US05 Late 1941 5-H Haze Gray - SOLD OUT
WEM-US06 Late 1941 5-O Ocean Gray - SOLD OUT
WEM-US07 5-S Sea Blue - SOLD OUT
WEM-US08 5-N Navy Blue - SOLD OUT
WEM-US09 5-B Thayer Blue
WEM-US10 1942 Revised Deck Blue 20-B - SOLD OUT
WEM-US11 Flight Deck Stain 21
WEM-US12 5-P Pale Gray - SOLD OUT
WEM-US13 1943 5-L Light Gray
WEM-US14 Anti-Fouling Norfolk Red 65A - SOLD OUT
WEM-US15 Mahogany Flight Deck Stain
WEM-US16 20-G Deck Green
WEM-US17 5-HG Haze Green
WEM-US18 5-L Light Green Revised
WEM-US19 5-OG Ocean Green
WEM-US20 5-NG Navy Green - SOLD OUT
WEM-US21 5-PG Pale Green revised
WEM-US22 #1 Green - SOLD OUT
WEM-US23 #2 Green - SOLD OUT
WEM-US24 #3 Green - SOLD OUT
WEM-US25 #4 Brown - SOLD OUT
WEM-US26 MTB Green
WEM-US27 Norfolk 250-N Flight Deck Stain
WEM-US28 Late WWII #27 Neutral Haze Gray - SOLD OUT
WEM-US29 Tropical Green
WEM-US30 USN Buff  - SOLD OUT
WEM-US31 #17 Neutral Ocean Gray
WEM-US32 #46 Neutral Outside Gray (1945)
WEM-US33 #37 Neutral 5-L Light Gray (1945) - SOLD OUT
WEM-US34 #11 Neutral Outside Gray (1945)
WEM-US35 #7 Neutral 5-N Navy Gray (1945) - SOLD OUT
WEM-US36 #4 Neutral Deck Gray 20 (1945) - SOLD OUT

MODERN PAINTS

WEM-M03 Modern USN Haze Gray - SOLD OUT
WEM-M04 Modern USN Deck Gray - SOLD OUT
WEM-M05 Modern USN Flight Deck Gray
WEM-M06 Modern Anti-fouling Hull Red - SOLD OUT

PAINTS COMMON TO MANY NAVIES:


WEM-C01 TEAK - SOLD OUT
WEM-C02 Matt Black
WEM-C03 Matt White
WEM-C04 Aluminum
WEM-C05 Silver


PROPS

BRASS PROPS From G.T. Sitek of the UK

Naval Style Propellers

NOTE:  This line is being DISCONTINUED, stocks are limited.  No price listed the prop is OUT.

When ordering propellers with reference to direction of rotation, please remember L.H. (Left Hand) propellers turn anti-clockwise and R.H. (Right Hand) propellers turn clockwise when viewed from astern.

As a general rule, single screw ships have a right-hand propeller. However, some continental-built ships may have left-hand propellers due to the direction of rotation of some of their diesels.

Twin-screw ships nearly always have outward-turning propellers at the top when in ahead mode. This is because outward-turning propellers are more efficient than inward-turning props.

order #Size Dia./PitchPrice each
GTSWW232mm (1.25 in) diameter 3-blade$16.00@
GTSWW444mm (1.75 in) diameter 3-blade$22.76@
GTSWW550mm (2.00 in) diameter 3-blade$25.64@
GTSWW657mm (2.25 in) diameter 3-blade$26.36@
GTSWW763mm (2.50 in) diameter 3-blade$29.48@
GTSWW932mm (1.25 in) diameter 4-blade$16.41@
GTSWW1250mm (2.00 in) diameter 4-blade$27.49@
GTSDD4458DD445,692,710 class 1/48 scale 3-blade$30.00@
SP19SS215-285 cl. sub 1/96 scale 4-blade$121.00@
SP23SS215-285 cl. sub 1/48 scale 4-blade$31.00@

PLEASE STATE LEFT OR RIGHT ROTATION/PITCH



NEW

These sets are all made in the UK and are from the same supplier who supplies the BRASS PROPS ( http://floatingdrydock.com/more.htm#PROPS )

ARIZONA BB39 CLASS BATTLESHIP

For this particular set, available configurations and components consist of:

Order # GTS-S-BB39-16 Scale 1:96    2L & 2R 3 Blades Price $65.00 per set.

Updated 17 March 2015


These props are now discontinued. These are made by the "Prop Shop" and are made by the "Lost Wax Process" These are machined, balanced, and polished. They are available in both Left & Right hand pitch.

NOTE: This line is DISCONTINUED at this time. I have some of the larger ones in stock. Items with price I still have some in stock.

order #HandSize Dia.PitchPrice each
PS-V275275LLEFT2 1/2"70MMOUT OF STOCK
PS-V3035RRIGHT3"87MMOUT OF STOCK
PS-V3035LLEFT3"87MM$35.45
PS-V37540RRIGHT3 3/4"102MM$46.50
PS-V37540LLEFT3 3/4"102MMOUT OF STOCK

We have a few old stock discontinued line of brass props from a US maker (Exact Min.).  These are different then the ones listed directly above.  We listed these on our sale page. http://floatingdrydock.com/sale.htm
Return to Home Page


You can contact us at: drydock@floatingdrydock.com
Updated 22 January 2017
