FITTINGS:

"JOHN HAYNES FITTINGS"
"H-R PRODUCTS FITTINGS"
"JD PRODUCTS FITTINGS"
"YANKEE MODEL WORKS"

"JOHN HAYNES FITTINGS

We are pleased to introduce this new line of highly detailed 1:96 scale fittings. These fittings are produced by JOHN R. HAYNES FINE SHIP MODELS. Mr. Haynes is one of the United Kingdoms, foremost warship model builders. The Floating Drydock is proud to be the sole North American supplier of these fittings. These fittings are made of either resin (R) and/or white metal (M). A little assembly is needed for the larger items.
Please note that we stock a large number of this line, however when many are ordered we have to get stocks in from them. The turn around time of Haynes parts is about four weeks.

New Prices as of 19 August 2004

Please Note: With the HIGH rate of the British Pound Sterling against the US Dollar please add 25% to all John Haynes fittings.

Also new 1/72 nd scale 20MM gun and Ammo Box, see the end of the listing.

1/96 SCALE

Order # Item Price Order # Item Price
JH-1 5"/38 SIN. OPEN GUN $23.00 JH-2 5"/38 Twin. ENCLOSED (w) rear chutes $27.00
JH-3 5"/38 SIN. ENCLOSED DD445 $19.00 JH-4 20mm Mk4 GUN $7.75
JH-5 40mm QUAD GUN (w) SHIELD $24.00
40mm (JH5) Instruction sheet

More photos

JH-6 Mk37 DIR. SQUARE BACK $15.00
JH-7 Mk37 DIR.(w) LATE WAR $15.00 JH-8 Mk51 DIRECTOR (40mm) $4.00
JH-561 Mk12 RADAR FOR Mk37 DIRECTOR, BRASS ETCHED$5.50
JH-9 TARGET DESIGNATOR $3.10 JH-10 12" SEARCHLIGHT(w) SWINGARM MT. $4.95
JH-11 SKY LOOKOUT CHAIR $7.00 JH-12 26' MOTOR WHALEBOAT(w)CANOPY $26.00

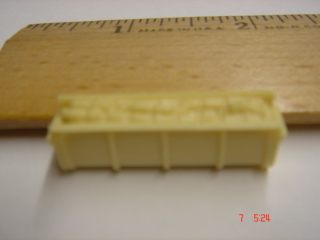

JH-13 DISCONTINUED NA JH-14 AIRCRAFT DECK TRACTOR $17.00
JH-15 STEEL CABLE REEL $6.00 JH-16 36" SEARCHLIGHT $11.75

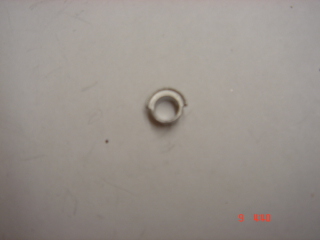

JH-17 16" PORTHOLE OPEN (M) $1.50 JH-18 16" PORTHOLE CLOSED (M) $1.40
JH-19 RAISED DECK HATCH (w) SCUTTLE (M) $4.00 JH-20 RAISED DECK HATCH (w) SCUTTLE, SMALL $3.25
JH-21 20mm R/S Locker Small 8 dog $3.10 JH-22 ELEC. BOAT WINCH (M) $5.25
JH-23 TWIN HEAD STEAM WINCH (M) $10.90 JH-24 TWIN HEAD WINDLASS (M) $10.60
JH-25 TBM AVENGER a/c (w) DECALS $34.00 JH-26 F6F HELLCAT a/c (w) DECALS $34.00
JH-27 SBD DAUNTLASS a/c (w) DECALS $34.00 JH-28 20mm Mk4 (w) Mk14 GUN SIGHT $7.95
JH-29 REPRODUCER/TRANSPONDER LG. 12 MODULE $1.50 JH-30 REPRODUCER SMALL 6 MODULE $1.25
JH-31 LOUDSPEAKER $1.25 JH-32 CO2 FIRE EXT. $1.90
JH-33 BULKHEAD LKR.,LARGE $3.20 JH-34 BULKHEAD LKR. SMALL $3.25
JH-35 A/C DECK CHOCKS, PR. $1.75 JH-36 W.T. DOOR PLAIN FACE $1.25
JH-37 W.T. DOOR REINFORCED $1.25 JH-38 PELORUS $2. 95
JH-39 COMPASS BINNACLE $2.75 JH-40 CHAIN PIPE (CV) PR. $4.00
JH-41 CAPSTAN & CTL. WHEEL $4.25 JH-42 WILDCAT (w) BRAKE WHEEL (CV) $4.90
JH-43 TWIN 20" BITT $1.60 JH-44 CAPSTAN (CV,CA) $2.95
JH-45 ANCHOR, SMALL (DD)1/2" $4.95 JH-46 HAWSER REEL, DOUBLE $2.95
JH-47 FIRE HOSE, COILED $1.00 JH-48 ANCHOR LARGE 3/4" $4.95
JH-49 CHAIN STOPPER, LARGE $3.10 JH-50 DOOR ARCH, LARGE (CV'S) $1.50
JH-51 DOOR ARCH, SMALL $1.60 JH-52 DAVIT (w) BASE (DD,DE'S) $6.75
JH-53 HATCH, SQUARE, LARGE $1.75 JH-54 HATCH, SQUARE, SMALL $1.50
JH-55 OPEN DOOR (w) FRAME $2.35 JH-56 ALIDADE $3.25
JH-57 CHAIN PIPE (w) COVER (DD) PR. $5.50 JH-58 5"/38 TWIN ENCLOSED (BB) $27.00
JH-59HEDGEHOG BOMB$1.50
JH-60DEPTH CHARGE ASHCAN$2.00
JH-61"K" GUN$2.00
JH-62A/C F4F WILDCAT$27.00
JH-63A/C TBD1 DEVASTATOR$27.00
JH-64.50 cal. NAVAL MOUNT$4.00
JH-65FLOATER NET INSERT FOR JH-622$2.80

The below is a listing of "John Haynes" fittings that were designed for the IOWA class battleship (WW2). However many can be used for other types of warships. Note: All prices are each unless noted otherwise.

Order # Item Price Order # Item Price
JH-B1 20" BITT $2.35 JH-B2 HAWSE LIPS (w) GUARD $10.50

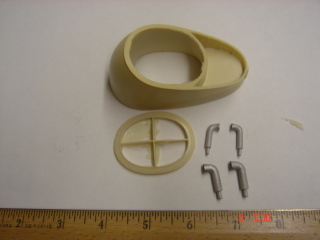

JH-B4 STACK CAP $26.00
JH-B5 WILDCAT SET l & r $21.00 JH-B6 20,000 lb. ANCHOR $7.00
JH-B7 21" CLOSED CHOCK $2.35 JH-B8 RUDDER non-working $35.50
JH-B9 PARAVANE STOWED $4.00

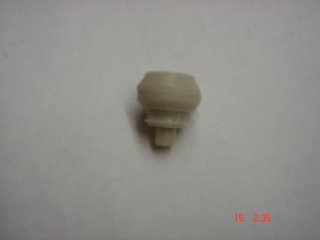

JH-B10 28" Mushroom Vent $3.00 JH-B11 24" Mushroom Vent $2.50
JH-B12 BUCKET VENT 12" $2.00
JH-B13 BUCKET VENT 30" $2.95 JH-B14 BUCKET VENT 24" $2.90
JH-B15 BUCKET VENT 30" $3.30 JH-B16 FIRE ROSE REEL $3.00

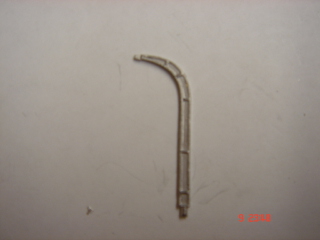

JH-B17 FIRE PLUG $1.25 JH-B18 CHAIN JACK $2.00
JH-B19 LIFTING DAVITS 2 TYPES pr. $1.75 JH-B20 LIFE RING (w) MARKER $2.00
JH-B21 DOOR#1,10 DOG PLAIN FACE $1.35 JH-B22 DOOR#2,Q.A. (w) WHEEL $2.75
JH-B23 DOOR#3,8 DOG REINFORCED $1.25 JH-B24 DOOR#4,8 DOG PLAIN $1.25
JH-B25 DOOR, AMMN. ACCESS $1.25 JH-B26 Discontinued-See JH623

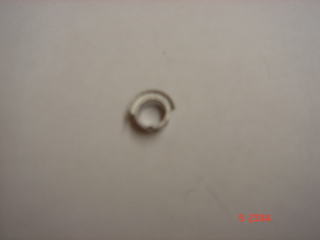

JH-B27 16" PORTHOLE $1.35 JH-B28 MUSHROOM VENT 40" $4.75
JH-B29 MUSHROOM VENT 44" $4.75 JH-B30 BUCKET VENT 8" $2.50
JH-B31 BUCKET VENT 36" $4.00 JH-B32 BUCKET VENT 40" $4.95
JH-B33 MOP $1.25 JH-B34 CO2 Bottle 3+2 $2.50
JH-B35 Acetylene 2+2 Bottles $2.25 JH-B36 BOAT DAVIT SET $9.50
JH-B37 BOAT WINCH ELEC. $4.90 JH-B38 BULKHEAD DAVIT short $1.95
JH-B39 PHONEBOX 1@ lg. & sm. $2.75 JH-B40 STERN CHOCK $2.95
JH-B41 12" ROPE REEL $2.60 JH-B42 16" TURRET DAVIT $2.00
JH-B43 FORCASTLE PADEYE $1.00 JH-B44 CAPSTAN & BRAKE SET $4.00
JH-B45 16" ROLLER CHOCK $2.75 JH-B46 Mk57 DIRECTOR $6.95
JH-B47 HELMET $.75 JH-B48 PEEP HOLE CONN. $1.95
JH-B49 WINCH, ELEC. $7.50 JH-B50 54"x36" HATCH $2.95
JH-B51 54"x36" ARMOR HATCH $2.95 JH-B52 36"x30" HATCH $2.25
JH-B53 36"x30" ARMOR HATCH $2.35 JH-B54 LIFE LINE STANCHION "H" TYPE, 10 pk. $6.95
JH-B55 DISCONTINUED JH-B56 25 MAN LIFE RAFT $3.00
JH-B57 "RDF" LOOP ANT. $2.55 JH-B58 PIPE VENT $1.50
JH-B59 CANE FENDER $.65 JH-B60 SC-1 SEAHAWK A/C $27.00
JH-B61 40mm LOADING TRAY DOOR $1.30 JH-B62 40mm LOADING TRAY $1.25
JH-B63 PARAVANE WILDCAT $3.95 JH-B64 OIL FILLING HATCH $.80
JH-B65 DAVIT SOCKET $1.25 JH-B66 DOOR#5,Q.A. $2.75
JH-B67 DOOR#6, SMALL $1.25 JH-B68 OS2U KINGFISHER A/C $27.00
JH-B69 ESCAPE HATCH $1.25 JH-B70 PEEP HOLE #2 $1.50
JH-B71 CONN PEEP HOLE $1.40 JH-B72 Mk38 DIR. Late $13.00
JH-B73 Mk27 DIR. RADAR $2.75 JH-B74 OIL HOSE $2.95
JH-B75"SG" RADAR$4.00JH-B76DOOR Type#7$1.25

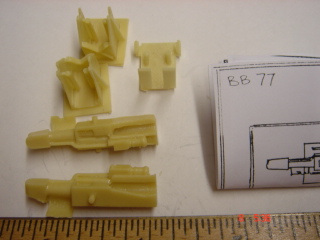

JH-B775"/38 TWIN PRACTICE LOAD. MACH.$13.00JH-B785"/38 SIN. LOAD. MACH. $6.00
JH-B79SIREN$2.95JH-B80WHISTLE, small$1.95
JH-B81WHISTLE, large$3.50JH-B82WIND INDICATOR$1.95

DESTROYER ESCORT & OTHER SHIPS ITEMS


JH-595FIRE HOSE DRAPED, Large$2.00
JH-596FIRE HOSE DRAPED, small$2.00
JH-60120mmReady Service Locker Large 10 dog$2.95
JH-612QUAD 1.1" GUN$21.00
JH-6133"/50 cal Mk 22 DE GUN$16.95
JH-614DE CLOSED CHOCK$1.00
JH-615DEPTH CHARGE ARBOR$2.00
JH-6163" AMMO LOCKER$2.95
JH-61710" TWIN BITT$1.75
JH-6186" TWIN BITT$1.75
JH-619K GUN (w) D.C. Mounted, Starboard$4.00
JH-620SAME AS ABOVE PORT SIDE$4.00
JH-622P.E. FLOATER NET BASKETS (3)$5.35
JH-62540mm SINGLE GUN$15.95
JH-626DANFORTH ANCHOR$4.00
JH-63240mm TWIN GUN (w) Brass Etch railing, sights$16.00
JH-63520mm TWIN GUN Power Mount$13.00
JH-67620mm TWIN GUN Pedestal Mount$12.00
JH-665Porthole Blue Dots for JH-623 50 per sheet$4.95
JH-669USN 30 ft. Carvel Cutter (Boat) 1900 era 1/96 sc.$19.00
JH-670USN 30 ft. Whaler/gig 1900 era, 1/96 sc.$19.00
JH-702Aircraft Crane Base 1/96 sc.$14.00
JH-704Mk27 Director Radar$2.95
JH-709Eyebolts (500 per)$8.50
JH-710Ladder Rungs (245) 1/96 sc.$8.50
JH-711Torpedo Director DD Type$4.00
JH-712Bridge Chair$4.00
JH-713Depth Charge Impulse Locker$3.50
JH-714D.C. Release Lever$3.50
JH-715DD Torpedo Crane Set$7.75
JH-716Gangway Watch Desk$2.00
JH-717Voice Tube$1.95
JH-718DD Smoke Generator Flared Nozzle (late war)$3.40
JH-719DD Escape Scuttle$4.00
JH-720STACK DD445,692 Pair$17.00
JH-723STACK WHISTLE & SIREN $6.95
JH-721SMOKE GENERATOR (4-tank type)$8.95
JH-72240mm SPARE BARREL R/S Box$5.95
JH-728HEDGE HOG LAUNCHER Mk10 USN WW2$21.00

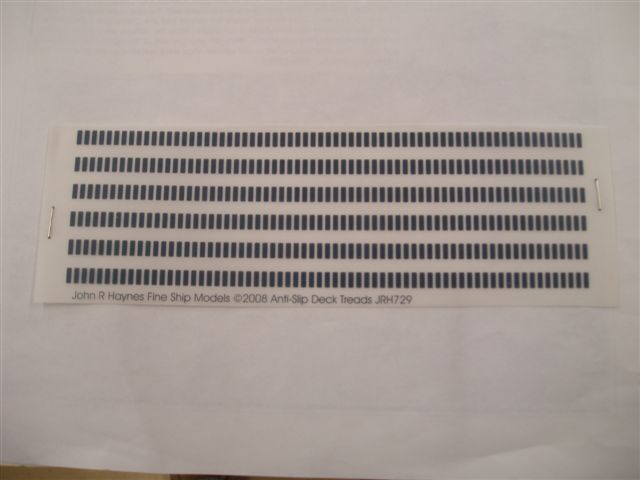

JH-729DECK TREAD Rub offs$19.00

P.E.-Photo Etch Brass


BB & CA/CL CATAPULTs


Battleship IOWA Type 1/96 scale catapult BRASS ETCH SET
Order Number #JH-631 $27.75 each

CA/CL Type catapult 1/96 scale BRASS ETCH SET
Order Number #JH-707 $38.00

BB43 AIRCRAFT CRANE


Battleship Tenn./Calif. Type 1/96 scale Aircraft Crane BRASS ETCH SET
Order Number #JH-703 $24.00 each

See above for base item JH-702

Radar SCREENS


JH-706"SK-1" RADAR SCREEN (Bedspring Type)$15.00
JH-727"SC-4/5 RADAR SCREEN (1)$7.80

40mm GUN SHIELDS


JH-66240mm Quad Gun Tub P.E. Brass set 1:96 sc$21.00
JH-66640mm Quad Gun Tub P.E. Brass set 1:192 sc$13.00

GUN SIGHTS


JH-655P.E. GUN SIGHTS$12.00

FLOATER NETS


JH-622P.E. FLOATER NET BASKETS (3)$5.75
See JH-65 for Insert

DEPTH CHARGE TRACK (DD)$ K GUN RACK

JH-725DEPTH CHARGE TRACK (2 sets)$25.00
JH-724K-GUN LOADER RACK (1)$7.70INSTRUCTIONS

DIRECTOR RADAR's

JH-561Mk12/22 radar screen for Mk 37 directors$5.95each
JH-708Radar screen & Bracket for Mk 34 directors$21.00each

PORTHOLES

JH-623P.E. 12" PORTHOLES (40)$3.40

TURNBUCKLES/EYEBOLTS

JH-709Eye Bolts 500 per fret$8.70
JH-624P.E. LIFELINE TURNBUCKLES (20)$1.95

STANCHIONS

JH-440 USN STANCHIONS 200 three loop, plus 26 end stanchions..$19.00
JH-499 ROYAL NAVY BALL STANCHIONS 200 two ball $19.00
JH-500 ROYAL NAVY BALL STANCHIONS 200 three ball $19.00
JH-501 ROYAL NAVY BALL STANCHIONS 200 three ball asymmetric $19.00

LADDER SETS/LADDER RUNGS

JH-667 USN Vertical Ladder set $17.00
JH-668 USN Incline Ladder sets $22.00
JH-710 Ladder Rungs 245 per fret $9.00

JH-737 USN Vertical Ladders $8.00

DRAFT MARKS 1/96 sc.

JH-562 WHITE DRAFT MARKINGS 5 to 35 set of 6 dry-transfer $13.00

TURRET SETS

JH-T1 USS IOWA Class 16"/50 single turret with sights, barrel, base, barbette, 1/96 sc. $170.00 each

JH-T2 USS ARIZONA BB39 14" Turret, 3 barrels, 3 blisters, 2 sights and vent trunks,1/96 scale. $70.00 each

JRH-705 USS TENN. BB43 14" Turret, 3 barrels, blisters, sights 1/96 $70.00 each

1/72nd Scale

Order #ItemPrice
JH-64220mm Single Mk 4 Gun$8.00
JH-64320mm Ready Service Locker$3.90
JH-70120mm Mk 10 Tripod Gun$8.00

ELCO PT BOAT KIT

NOW AVAILABLE

By John Haynes

ptjh.jpg - 23583 Bytes
A Comprehensive 1/24 scale semi-kit containing the majority of what you need to build an all singing, all dancing , PT BOAT [ you provide the timber , glue and wire ,motors and props and R/C gear [plus some effort] to get this 40" Quality model on the water. Loaded with guns and Torpedo and complete with cockpit and cabin and detail, should make quite a splash! Shortly after a Higgins PT at 1/24 will be available , this will also be a Quality item.

Order # JHEPT - $530.00 plus $120.00 for Direct Fedex Next Day Shipping.

John Haynes updated 20 October 2007

"H-R FITTINGS"

This extensive line of metal fittings is produced by H-R Products and come in various scales. Please note that these parts are not stocked in large numbers.

"Turn around on orders for these parts take about eight weeks OR LONGER. All orders for these parts and are custom made.  They are known for long delays in delivering parts, sorry."

1/1200 SCALE
1/192 SCALE
1/144 SCALE
1/32 SCALE
1/384 SCALE
1/48 SCALE
1/96 SCALE
1/125 SCALE
1/24 SCALE
1/16 SCALE
1/20 SCALE
1/72 SCALE
1/256 SCALE

1/1200 SCALE

Order #ItemPrice Order #ItemPrice
S12-145' LAUNCH$.25 S12-238' LAUNCH$.25
S12-335' CABIN LAUNCH$.25 S12-450' LCM$.25
S12-530' LIFEBOAT$.25 S12-630' DOUBLE LIFEBOAT$.25
S12-7LCVP$.25 S12-8F4U CORSAIR a/c$.25
S12-9TBF AVENAGER a/c$.25 S12-10TBF (wings folded)$.25
S12-11SB2C HELLDIVER a/c$.25 S12-12F6F HELLCAT a/c$.25
S12-13F6F (wings folded)$.25 S12-14F-4 PHANTOM a/c$.25
S12-15F-4 (wings folded)$.25 S12-165"/38 SINGLE OPEN MT.$.25
S12-175"/38 SIN. ENCLOSED MT.$.25 S12-185"/38 TWINN MT.$.25
S12-1940mm QUAD$.25 S12-205"/54 single mt.

$.25
S12-21TERRIER LAUNCHER$.25 S12-22TORP. TUBE QUAD$.25
S12-23ANCHOR,SMALL$.25 S12-24WINCH$.25
S12-25TERRIER DIRECTOR$.25 S12-26CRANE$.25
S12-27VENT (1/16"X1/32")$.25 S12-28VENT (.045X.020)$.25
S12-2936" SEARCHLIGHT$.25 S12-38JAP. ZERO a/c$.25
S12-39JAP. KATE a/c$.25 S12-40JAP. VAL a/c$.25

S12-41

OS2U KINGFISHER a/c$.25 S12-4240' LAUNCH$.30

1/192 SCALE

Order #ItemPriceOrder #ItemPrice
S6-1 DD STACK(w) GRID $.85 S6-2 5" LOADING MACH. LH $.55
S6-3 5" LOADING MACH. RH $.55 S6-4 Mk37 DIR. ANTENNA $.85
S6-5 25 MAN LIFE RAFT $.55 S6-6 DISCONTINUED
S6-7 20mm SINGLE GUN $.55 S6-8 40mm TWIN MT. $1.65

S6-9

 40mm QUAD $2.50 S6-10 DD STACK SIDE LOUVERS $.30
S6-11 "K" GUN $.15 S6-12 "K" GUN RACK $.55
S6-13 DEPTH CHARGE TRACK $.55 S6-14 T.T. QUINT. $1.65
S6-15 W/T DOOR $.20 S6-16 26' MOTOR WHALEBOAT $2.20
S6-17 BOAT DAVITS $.40 S6-18 36" SEARCHLIGHT $.40
S6-19 5-BLADE PROP 7/8" $.85 S6-20 5" TWIN MT. $4.40
S6-21 Mk51 DIRECTOR $.30 S6-22 CABLE REEL $.40
S6-23 3"/50 SINGLE Mk22 $.85 S6-24 20mm R/S LKR. $.35
S6-25 DECK HATCH $.28 S6-26 DD ANCHOR DECK BOLSTER $.35
S6-27 SMOKE GENERATOR $.55 S6-28 DD FLAG BAG $.40
S6-29 PELORUS $.20 S6-30 STD. COMPASS $.30
S6-31 TORP. DIRECTOR $.35 S6-32 DD ANCHOR $.35
S6-33
 5" SIN. GUN MT.(enclosed) $3.30 S6-34 12" SEARCHLIGHT $.15
S6-35 24" SEARCHLIGHT $.23 S6-36 BOAT WINCH $.40
S6-37 24" MUSHROOM VENT $.23 S6-38 HOSE REEL $.35
S6-39 TT BLAST SHIELD $.55 S6-40 OS2U KINGFISHER a/c $4.40
S6-41 ANCHOR (.7"X.7") $.85 S6-42 DD TWIN BITT $.20
S6-43 DD CLOSED CHOCK $.15 S6-44 25 MAN OVAL LIFE RAFT $.55
S6-45 PARAVANE $.40 S6-46 F6F HELLCAT a/c
DISCONTINUED

S6-47

 TBF AVENGER a/c $5.50 S6-48 3 BLADE PROP 7/16" D. $.40
S6-49 3 BLADE PROP 1/2"D. $.55 S6-50 SS PERSISCOPE ASSY. $2.20
S6-51 SUB CLEAT $.15 S6-52 SUB ESCAPE HATCH $.20
S6-53 SUB CAPSTAN $.35 S6-54 5"/38 SIN. OPEN $2.20
S6-55 5"/25 SIN. OPEN $2.20 S6-56 TWIN 20mm GUN $.85
$2.20 S6-58 FLOATER NET BASKET $.55
S6-59 40mm SIN. GUN $1.10 S6-60 36' LCVP (WW2) $2.75
DISCONTINUED S6-62 SUB HATCH $.30
S6-63 4"/50 GUN (DD) $1.65 S6-64 26' LIFEBOAT $2.20
S6-65 COWL VENT 7/16" $.55 S6-66 COWL VENT 1/4" $.40
NOTE: DD stands for Destroyer. Also for bitts and chocks you can use another scales part.
i.e. A 12" chock in 1/96 scale (S8-21) would be a 24" chock in 1/192 scale, and a 10" bitt (S8-20) would be a 20" bitt in 1/192. These would be used on the IOWA class Battleships, and so forth....

1/144 SCALE


Order #
Item
Price
Order #
Item
Price
S44-1
20mm SINGLE GUN
$.55
S44-2
40mm TWIN GUN
$1.65
S44-3
40mm QUAD GUN
$2.75
S44-4
W.T. DOOR
$.35
S44-5
5"/38 SINGLE GUN OPEN
$3.30
S44-6
DISCONTINUED
S44-7
20mm R/S LKR.
$.55
S44-8
Mk51 DIRECTOR (40mm)
$.40
S44-9
ANCHOR (BB,CV)
$1.65
S44-10
ANCHOR, (CA,CL)
$.80
S44-11
ANCHOR (DD,DE)
$.75
S44-12
FLOATER NET
$.55
S44-13
VERTICAL LADDER
$.40
S44-14
INCLINE LADDER
$.55
S44-15
DECK HATCH
$.30
S44-16
24" SEARCHLIGHT
$.35
S44-17
36" SEARCHLIGHT
$.55
S44-18
3"/50 SINGLE GUN OPEN
$1.65
S44-19
5"/25 OPEN GUN (CA,BB)
$2.75
S44-20
BRITISH 2 POUNDER GUN
$2.75
S44-21
JAP. 25mm AA SIN.
$1.40
S44-22
JAP. 25mm AA DOUBLE
$1.65
S44-23
JAP. 25mm AA TRIPLE
$1.95
S44-24
1.1" QUAD GUN
$1.95

1/32 SCALE


S32-1
TORP. RACK, PT BOAT
$3.30
S32-2
PT BOAT DECK VENT
$.85
S32-3
PT BOAT CLEAT
$.35
S32-4
MOORING BIT PT BOAT
$.40
S32-5
STANDARD COMPASS
$1.65
S32-6
PELORUS
$1.10
S32-7
ENG. ORDER TELE.
$1.10
S32-8
CO2 FIRE EXT.
$1.10
S32-9
DEPTH CHARGE & RACK PT
$3.30
S32-10
Y STARINER (FIRE PLUG)
$.55
S32-11
FIRE AX
$.40
S32-12
6" CHOCK
$.85
S32-13
6" BITT
$.85
S32-14
40mm X4 CLIP
$.40
S32-15
DISCONTINUED
S32-16
20mm Mk5 GUN
$13.20
S32-17
3"/50 SINGLE Mk22
$33.00
S32-18
40mm SINGLE GUN
$19.80
S32-19
TWIN .50 CAL. M/GUN
$2.75
S32-20
37mm PT BOAT GUN
$8.80
S32-21
20mm LATE WW2
$6.60
S32-22
PT BOAT ROCKET LAUNCHER
$6.60
S32E-6
Ammo Box 50 Cal M2 U.S. WWII
$.45
S32E-7
Ammo Box 30 Cal M1A1 U.S. WWII
$.45
S32E11
Wood Box W/50 Cal Ammo U.S. WWII
$.85
S32E12
Wood Box 30 Cal U.S. WWI & II
$.45
S32E18
Jerrican, U.S. WWII
$.85
S32E20
Helmet, U.S. WWII
$.45
S32E23
55 Gal. Oil Drum (Polymer Resin)
$1.10
S32E37
Stretcher, U.S. WWII (Rolled Up)
$.85
S32E51
Binoculars & Case
$.40
S32E55
40mm x 4 Shell Clip U.S. WWII
$.45
S32E56
40mm Shell Casing, Used
$.15
S32E57
40mm Wooden Ammo Box U.S. WWII
$1.10
S32E64
Sledge Hammer $0.40E-90 Broom
$.45
S32CM232
U.S. Navy Gunner (For Use With S32-16)
$7.70
S32CM233
U.S. Navy Gunner W/20mm Oerlikon, 1944
$16.50
S32AW-7
U.S. Browning M1917 30 Cal W/Ammo Boxes, WWI & II
$4.40
S32AW-9
U.S. Browning M-2 50 Cal W/Ammo Boxes, WWII
$4.40
S32AW-21
U.S. Browning 30 Cal, Aircooled, Vehicle Mnt. WWI
$.40
S32AW-23
U.S. Browning 50 Cal, Watercooled, AA Mount, WWII
$11.00
S32AW-33
U.S. Browning M-2, 50 Cal, Vehicle Mount WWII
$1.10

1/384 SCALE

Order #

Item

Price

Order #

Item

Price
S3-1
30' LIFEBOAT
$.55
S3-2
GRAVITY DAVIT Pr.
$.55
S3-3
DISCONTINUED
S3-4
5 0' LCM
$1.10
S3-5
36' LCVP
$.85
S3-6
DISCONTINUED
S3-7
F4U CORSAIR a/c
$1.65
S3-8
TBF AVENAGER a/c
$1.65
S3-9
TBF (WINGS FOLDED)
$1.65
S3-10
SB2C HELLDIVER a/c
$1.65
S3-11
F6F HELLCAT a/C
$1.55
S3-12
F6F (WINGS FOLDED)
$1.65
S3-13
SBD DAUNTLASS a/c
$1.65
S3-14
OS2u KINGFISHER a/c
$1.65
S3-15
5"/38 SIN. OPEN
$.30
S3-16
5"/38 TWIN MT.
$1.10
S3-17
3"/50 TWIN AUTO MT.
$.85
S3-18
40mm QUAD
$.55
S3-19
40mm TWIN MT.
$.40
S3-20
TERRIER LAUNCHER
$.85
S3-21
DEPTH CHARGE RACK
$.40
S3-22
DISCONTINUED
S3-23
TERRIER DIRECTOR
$.55
S3-24
WINCH
$.15
S3-25
DISCONTINUED
S3-26
ANCHOR (1/4X1/4)
$.20
S3-27
DISCONTINUED
S3-32
T.T. QUAD
$.55
S3-33
26' MOTOR WHALEBOAT
$.40
S3-34
40' LAUNCH
$.55
S3-35
LIFE RAFTS,OVAL ASST.
$.25
S3-36
20mm SIN. GUN
$.20
S3-37
5"/25 SIN. OPEM
$.35
S3-34
LVT(4)
$.55

1/48 SCALE

Order #
Item
Price
Order #
Item
Price
S4-1
20mm SINGLE OPEN Mk5
$3.85
S4-2
4"/50 SIN. OPEN
$13.20
S4-3
SUB ESCAPE HATCH
$1.65
S4-4
SUB STERN CHOCK
$.55
S4-5
SUB ROLLER CHOCK
$.40
S4-6
SUB CLEAT
$.35
S4-7
SUB CAPSTAN
$.85
S4-8
40mm SIN. GUN
$8.80
S4-9
5"/25 SUB DECK GUN
$22.00
S4-10
SUB ANCHOR
$1.65

S4-11
40mm TWIN GUN
$16.20
S4-12
40mm QUAD GUN
$19.80
S4-13
3"/50 SIN. OPEN Mk22
$11.00
S4-14
STANDARD COMPASS
$.55
S4-15
PELORUS
$.40
S4-16
ENG. ORDER TELE
$.40
S4-17
CO2 FIRE EXT.
$.55
S4-18
LIFE RING
$.35
S4-19
FIGHTING LIGHTS
$.30
S4-20
FIRE PLUG
$.35
S4-21
FIRE AX
$.35
S4-22
20mm Mk4 GUN
$3.85
S4-23
20mm R/S LKR.
$2.20
S4-24
DECK HATCH (w) SCUTTLE
$.85
S4-25
W.T. DOOR
$1.10

S4-26

K-GUN

$.55

S4-27
DEPTH CHARGE ASH CAN
$.85
S4-28
DRAPED FIRE HOSE
$.55
S4-29
Mk51 DIRECTOR
$2.75
S4-30
5"/38 CAL. GUN BARREL
$1.10
S4-31
5" BLAST HOOD
$1.10
S4-32
5"/38 SIN. OPEN GUN
$33.00
S4-33
BOW CHOCK DD
$.85
S4-34
BOAT WINCH
$2.20
S4-35
LOUDSPEAKER
$.40
S4-36
DD STACK SIDE LOUVER
$.85
S4-37
20mm TWIN GUN
$6.60
S4-38
SIREN 1" LONG
$.85
S4-39
40mm X4 CLIP
$.35
S4-40
CABLE REEL
$2.75
S4-41
HOSE REEL
.55
S4-42
12" SIGNAL LIGHT
$.85
S4-43
TWIN CO2 BOTTLES
$1.10
S4-44
TARGET DESIGNATOR
$1.40
S4-45
SAILOR AT EASE
$1.10
S4-46
SUB DECK FITTINGS KIT
$11.00

1/96 SCALE

S8-1
20mm SIN. Mk4 GUN
$1.40
S8-2
40mm TWIN
$2.75
S8-3
40mm QUAD GUN
$5.50
S8-4
DECK HATCH (w) SCUTTLE
$.40
S8-5
W.T. DOOR
$.40
S8-6
CABLE REEL
$1.65
S8-7
R/S LKR.
$.85
S8-8
FIRE HOSE REEL
$.40
S8-9
DRAPED FIRE HOSE
$.35
S8-10
TWIN CO2 CYC.
$.40
S8-11
25 MAN LIFE RAFT
$1.10
S8-12
FLOATER NET
$1.10
S8-13
SMOKE GENERATOR
$1.10
S8-14
STD. COMPASS
$.55
S8-15
PELORUS
$.40
S8-16
20" BITT
$.65
S8-17
DD BOW CHOCK
$.40
S8-18
21" CLD. CHOCK
$.55
S8-19
16" ROLLER CHOCK
$.55
S8-20
10" BITT
$.40
S8-21
12" CLOSED CHOCK
$.30
S8-22
20mm TWIN GUN
$1.95
S8-23
K GUN
$.35
S8-24
DEPTH CHARGE ASH CAN
$.35
S8-25
T.T. SINGLE
$1.95
S8-26
TORP. DIRECTOR
$.65
S8-27
BOAT DAVIT
$1.10
S8-28
5" LOADING MACH.(RH)
$2.20
S8-29
36" SEARCHLIGHT
$1.65
S8-30
5" LOAD MACH.(LH)
$2.20
S8-31
24" SEARCHLIGHT
$.55
S8-32
12" SIGNAL LT.
$.30
S8-33
DECK BOLSTER
$.40
S8-34
LIFE RING
$.30
S8-35
DD STACK LOUVER
$.40
S8-36
VERTICAL LADDER
$.40
S8-37
FIGHTING LIGHTS
$.20
S8-38
3"/50 SIN. Mk22 GUN
$4.40
S8-39
5" TWIN SIGHT HOOD
$.40
S8-40
5" TWIN BLAST HOOD
$.55
S8-41
PARAVANE
$1.65
S8-42
DD ANCHOR
$.85
S8-43
3" R/S LKR.
$.85
S8-44
SG RADAR
$.35
S8-45
40mm X4 CLIP
$.40
S8-46
LOUDSPEAKER
$.30
S8-47
Mk51 DIRECTOR
$.55
S8-48
25 MAN OVAL LIFE RAFT
$.85
S8-49
HATCH OVAL DD
$.30
S8-50
STACK VENT, DD
$.65
S8-51
20mm R/S LKR.
$.85
S8-52
20mm R/S LKR.
$1.40
S8-53
20mm Mk4 GUN
$1.65
S8-54
40mm SIN. GUN
$2.75
S8-55
5"/38 OPEN SIN.
$8.25
S8-56
4"/40 SIN. GUN
$3.30
S8-57
1.1" QUAD GUN
$3.30
S8-58
5" BASE RING TWIN
$1.65
S8-59
5" BASE RING SIN.
$.85
S8-60
SUB ESCAPE HATCH
$.55
S8-61
SUB CAPSTAN
$.40
S8-62
5"/25 SUB DECK GUN
$5.50
S8-63
HEDGE HOG LAUNCHER
$5.50
S8-64
Mk37 DIR. RADAR
$2.20
S8-65
SIDE LIGHT (PR.)
$.85
S8-66
SHIPS BELL SMALL
$.20
S8-67
SIREN .6" LONG
$.40
S8-68
SIREN .4" LONG
$.30
S8-69
INCLINE LADDER
$.85
S8-70
BOAT WINCH
$.85
S8-71
W.T. DOOR, RIBBED
$.55
S8-72
DOOR (w) PORT
$.40
S8-73
TURRET HATCH
$.30
S8-74
DECK HATCH
$.30
S8-75
5"/38 GUN BARREL
$.35
S8-76
5" GUN BARREL(w)BLOMMER
$.55
S8-77
5"/25 BB,CA DECK GUN
$5.50
S8-78
ENG. ORDER TELE.
$.35
S8-79
CO2 FIRE EXT.
$.30
S8-80
SEA STRAINER FIRE PLUG
$.30
S8-81
6" BITT
$.20
S8-82
SUB CLEAT
$.30
S8-83
SUB ROLLER CHOCK
$.30
S8-84
SUB DECK HATCH
$.30
S8-85
SUB STERN CHOCK
$.35
S8-86
3 BLADE PROP 1/4"
$.30
S8-87
GERMAN 8.8 GUN U-BOAT
$1.10
S8-88
GERMAN 2.0cm DECK GUN
$.85
S8-89
TORP. CRANE DD
$1.65
S8-90
3"/50 TWIN OPEN
$2.20
S8-91
T.T. BLAST SHIELD
$1.10
S8-92
QUINT. T.T.
$8.20
S8-93
QUINT. TT(w)BLAST SHIELD
$8.80
S8-94
5"/51 OPEN PRE-WAR
$3.30
S8-95 SAILOR AT EASE
$.55
S8-101
JAP. 25mm AA GUN SIN.
$2.20
S8-102
JAP. 25mm AA GUN TWIN
$2.50
S8-103
JAP. 25mm AA GUN TRIPLE
$2.75
S8-104
THREE BLADE PROP 1.1"
$.85

1/125 SCALE

Order #
Item
Price
Order #
Item
Price
S125-1
20mm SINGLE GUN
$.85
S125-2
40mm TWIN GUN
$2.20
S125-3
40mm QUAD GUN
$3.30

1/24 SCALE


Order #
Item
Price
Order #
Item
Price
S24-1
20mm Mk4 GUN
$17.60
S24-2
20mm Mk10 SIN.
$13.20
S24-3
20mm PT BOAT GUN
$6.60
S24-4
40mm SIN. GUN
$22.00

1/16 SCALE


Order #
Item
Price
Order #
Item
Price
S16-1
20mm PT BOAT GUN
$11.00
S16-2
TWIN .50 CAL. MG
$11.00

1/20 SCALE


Order #
Item
Price
Order #
Item
Price
S20-1
TWIN .50 CAL MG
$6.60
S20-3
20mm Mk4 SIN. GUN
DISCONTINUED
S20-4
20mm TRIPOD Mk10 GUN
$19.80
S20-5
20mm LATE PT GUN
$8.80
S20-6
DEPTH CHARGE & RACK PT
$4.40
S20-7
40mm SIN. GUN
$26.40
S20-8
ROCKET LAUNCHER
$6.60
S20-9
MOORING BITT
$.85
S20-10
DECK VENT EARLY PT
$.85
S20-11
DECK VENT LATE PT
$1.10
S20-12
DEADLIST FRAME
$.40
S20-13
PT MAST 1943
$11.00
S20-14
PT TORP. ROLL RACK
$8.80
S20-15
LIFE RIN
$1.10
S20-16
10 MAN LIFE RAFT PT
Discontinued
S20-17
1945 RADR MAST
$44.00
S20-18
1944 RADAR MAST(DOME)
$16.50
S20-19
20mm AMMO MAG.
$1.65

1/72 SCALE


Order #
Item
Price
Order #
Item
Price
S72-1
20mm Mk4 GUN
$2.20
S72-2
40mm TWIN GUN
$8.80
S72-3
Mk51 DIRECTOR
$1.65
S72-4
20mm R/S LKR.
$1.10
S72-5
12" CLSD. CHOCK
$.40
S72-6
K GUN
$.55
S72-7
TWIN CO2 BOTTLES
$.85
S72-8
3"/50 SIN. GUN Mk22
$6.60
S72-9
DD ANCHOR
$1.65
S72-10
W.T. DOOR
$.55
S72-11
DECK HATCH(W)SCUTTLE
$.55
S72-12
HOSE REEL
$.55
S72-13
DRAPED FIRE HOSE
$.55
S72-14
10" BITT
$.55
S72-15
DD STACK SIDE LOUVER
$.65
S72-16
5"/38 GUN BARREL
$.55
S72-17
VERTICAL LADDER
$.40
S72-18
40mm SIN GUN
$4.40
S72-19
25 MAN LIFE RAFT
$1.65
S72-20
LIFE RING
$.35
S72-21
PELORUS
$.40
S72-22
STD. COMPASS
$.55
S72-23
ENG. ORDER TELE.
$.40
S72-24
FIGHTING LIGHTS
$.30
S72-25
CO2 FIRE EXT.
$.55
S72-26
LOUDSPEAKER
$.35
S72-27
CHAIN DECK BOLSTER
$.55
S72-28
12" SIGNAL LT.
$.65
S72-29
24" SEARCHLIGHT
$.85
S72-30
FIRE PLUG
$.40
S72-31
FIRE AX
$.35
S72-32
6" BITT
$.40
S72-33
5" GUN BASE RING SIN.
$2.20
S72-34
SIN. TORP. TUBE
$2.75
S72-35
TORP. DIRECTOR
$.85
S72-36
BOAT DAVIT DD
$1.65
S72-37
5" LOAD. MACH
$2.75
S72-38
SMOKE GENERATOR
$2.20
S72-39
SG RADAR
$.55
S72-40
DC ASH CAN
$.65
S72-41
40mm QUAD GUN
$13.20
S72-42
Mk37 RADAR
$2.75
S72-43
DD STACK VENT
$.85
S72-44
OVAL DECK HATCH
$.40
S72-45
36" SEARCHLIGHT
$2.75
S72-46
5" BLAST HOOD
$.85
S72-47
TORP. CRANE
$1.65
S72-48
SUB DECK HATCH
$.40
S72-49
SUB DECK CLEAT
$.30
S72-50
SUB ROLLER CHOCK
$.35
S72-51
SUB STERN CHOCK
$.40
S72-52
SUB CAPSTAN
$.55
S72-53
DD BOW CHOCK
$.55
S72-54
BOAT WINCH
$1.10
S72-55
SIREN .7" LONG
$.55
S72-56
20mm Mk10 GUN
$1.65
S72-57
20mm TWIN GUN
$2.75
S72-58
5"/38 SIN. OPEN
$11.00
S72-59
5"/38 OPEN(w)SHIELD
$12.10
S72-60
40mm X4 CLIP
$.55
S72-61
BRIT. 4" Mk XIX GUN
$6.60
S72-62
TARGET DESIGNATOR
$1.10
S72-63
FLOATER NET
$2.20
S72-64
5"/25 SUB DECK GUN
$8.80
$6.60
S72-66
1.1" QUAD GUN
$5.50

1/256 SCALE

Order #
Item
Price
Order #
Item
Price
S256-1
DANFORTH ANCHOR
$.30
S256-2
STD. ANCHOR DD
$.30
S256-3
ASROC LAUNCHER
$1.65
S256-4
BITT
$.15
S256-5
CABLE REEL
$.30
S256-6
CAPSTAN
$.20
S256-7
CHOCK
$.15
S256-8
DAVIT, WHALEBOAT
$.30
S256-9
DAVIT,GRAVITY SIDE MT.
$.35
S256-10
DAVIT,GRAVITY TOP MT.
$.35
S256-11
DEPTH CHARGE RACK
$.40
S256-12
W.T. DOOR
$.15
S256-13
Mk37 DIRECTOR
$.85
S256-14
5"/38 SIN. OPEN GUN
$1.10
S256-15
5"/38 SIN. ENCLOSED
$1.65
S256-16
5"/38 TWIN GUN
$2.20
S256-17
DD FLAG BAG
$.30
S256-18
FLOATER NET
$.35
S256-19
20mm SIN. GUN
$.35
S256-20
40mm TWIN GUN
$.55
S256-21
40mm QUAD GUN
$1.10
S256-22
Mk51 DIRECTOR
$.30
S256-23
DECK HATCH
$.15
S256-24
HEDGEHOG LAUNCHER
$1.65
S256-25
K GUN & RACK
$.40
S256-26
INCLINE LADDER
$.35
S256-27
LCVP
$1.65
S256-28
LIFE RAFT
$.35
S256-29
5" LOAD. MACH LH
$.35
S256-30
5" LOAD. MACH. RH
$.35
S256-31
PROP 3 BLADE DD LH
$.35
S256-32
PROP 3 BLADE DD LH
$.35
S256-33
Mk37 RADAR
$.85
S256-34
STACK BASE DD
$.55
S256-35
STACK CAP(w)WHISTLE ASSY.
$.35
S256-36
STACK CAP(w)GRID
$1.10
S256-37
STACK REAR VENT PIPE
$.30
S256-38
36" SEARCHLIGHT
$.35
S256-39
3"/50 SIN. GUN OPEN
$.55
S256-40
3"/50 TWIN AUTO OPEN
$1.65
S256-41
TORP. DIRECTOR
$.30
S256-42
TORP. CRANE DD
$.30
S256-43
TT Mk32 TRIPLE
$.40
S256-44
TT QUINT.
$1.10
S256-45
TT QUAD
$1.10
S256-46
TT TRIPLE
$1.10
S256-47
VENT SIDE LOUVER STACK
$.20
S256-48
TARTER LAUNCHER
$1.75
S256-49
TERRIER LAUNCHER
$1.75
S256-50
5"/54 Mk 45 SIN.
$2.20
S256-51
26' MOTOR WHALEBOAT
$1.10
S256-52
26' PER. BOAT
$1.10

"JD FITTINGS

These are very high detail and accurate 1/96 scale fittings. If you want the best, well here they are.

NOTE:  THIS LINE IS BEING DISCONTINUED AND ONCE ON-HAND STOCKS ARE

GONE, THAT IT.

1/96 Scale Parts

3" 50 cal. Mk 33 Twin Open Gun

Part JD-01, Price: $35.00

3" 50 cal. Mk 27 Single Open Gun

Part JD-02, Price: $25.00

Mk 56 Director

Part JD-03, Price: $15.00

Mk 52 Director Mk 63 G.F.C.S.

Part JD-04, Price: $8.00

Mk 51 Director

Part JD-05, Price: $5.00



50 cal. Single Water-cooled Gun

Part JD-06, Price: $5.00

4" 50 cal. Open Sub Deck Gun

Part JD-07, Price: $12.00

5" 25 cal. Open Deck Gun

Part JD-08, Price: $20.00

20mm Ready Service Locker

Part JD-09, Price: $1.00

40mm Barrel Locker

Part JD-10, Price: $1.00

5"/25 Ready Service Locker

Part JD-11, Price: $1.00
JD-12 20mm Mk4 Single Gun $7.50@
JD-13 20mm Mk10 Twin Gun Release in Jan., 2008
JD-14 5" 51 cal. Open Gun for BB,CA $15.00
JD-15 36" SEARCHLIGHT $7.50
JD-16 24" SEARCHLIGHT $5.00
JD-17 PARAVANE $2.50
JD-18 FIRE HOSE DRAPED $ .25

"YANKEE MODEL WORKS

NOTE:  THIS LINE IS BEING DISCONTINUED AND ONCE ON-HAND STOCKS ARE

GONE, THAT IT.

Yankee Modelworks is pleased to announce our new line of 1/350 scale Detail Fittings. Many customers have asked us to make these fittings available so they can selectively upgrading their already built Plastic Models, or to replace fittings from other to be built kits. These items come in a re sealable bag with a cardboard header ready for pegboard display. Each item is priced $5.95. The number in brackets is the number included in one bag.



All of these products are ready for immediate shipping!



World War II USN Ship Fittings

Item Number Item Description (Quantity in Pack) Price

YKM-20001 26 ft Motor Whaleboat  (4)  $5.95

YKM-20002 40 ft Motor Launch  (4)  $5.95

YKM-20003 25 Man Oval Life Rafts  (12)  $5.95

YKM-20004 25 Man Rectangular Life Rafts  (12)  $5.95

YKM-20005 40 Man Oval Life Rafts  (12)  $5.95

YKM-20006 Quad 1.1" Machine Gun  (4)  $5.95

YKM-20007 OUT

YKM-20008 40mm Dual Gun Mount  (6)  $5.95

YKM-20009 OUT

YKM-20010 OUT

YKM-20011 5"/38 Open Gun Mount  (4)  $5.95

YKM-20012 5"/38 Closed Gun Mount  (2)  $5.95

YKM-20013 5"/38 Dual Gun Mount  (2)  $5.95

YKM-20014 Mk 37 Directory (Early)  (2)  $5.95

YKM-20015 Mk 37 Directory (Late)  (2)  $5.95

YKM-20016 Mk 51& Mk 57 Directors  (12)  $5.95

YKM-20017 Mk 28 Gun Director  (2)  $5.95

YKM-20018 Mk 33 Gun Director  (2)  $5.95

YKM-20019 Quad Torpedo Tubes  (2)  $5.95

YKM-20020 Quintuplet Torpedo Tubes  (2)  $5.95

YKM-20021 Boat Davits  (4)  $5.95

YKM-20022 12" Signal Lights  (6)  $5.95

YKM-20023 24" Search Lights  (6)  $5.95

YKM-20024 36" Search Lights  (6)  $5.95

YKM-20025 3 Bladed Propeller Set  (4)  $5.95

YKM-20026 4 Bladed Propeller Set  (4)  $5.95

YKM-20027 5 Bladed Propeller Set  (4)  $5.95

YKM-20028 OUT

YKM-20029 Signal Bag Storage  (2)  $5.95

YKM-20030 USN Anchor Set  (6)  $5.95

YKM-20031 5" Practice Loader  (2)  $5.95

YKM-20032 Paravanes  (4)  $5.95

YKM-20033 SOC Seagull Aircraft  (1)  $5.95

YKM-20034 OUT

YKM-20035 Seahawk Aircraft  (1)  $5.95

Modern USN Ship Fittings

Item Number Item Description (Quantity in Pack) Price

YKM-20100 Rigid Inflatable Boat  (2)  $5.95

YKM-20101 Mk 32 Triple Torpedo Tubes  (2)  $5.95

YKM-20102 76mm Automatic Gun (for FFG)  (2)  $5.95

YKM-20103 USN Modern Anchor  (3)  $5.95

YKM-20104 OUT

Return to Home Page

You can contact us at: drydock@floatingdrydock.com

up-dated 14 April 2008
